Wifi setup manual for Windows

Click to watch the details information!

For Windows 8 (How to go to Control Panel)

•  Move the mouse cursor to the top right corner of the screen to reveal the Charms Menu. Click Settings > Control Panel.

• Right click Windows Logo on Start Bar will see the menu, then click Control Panel

For Windows 10 (How to go to Control Panel)]

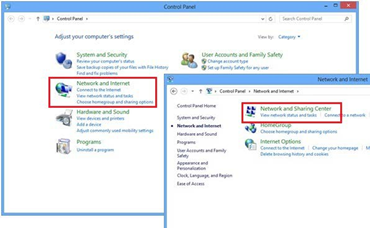

• Click Network and Internet > Network and Sharing Center

• Click Set up a new connection or network
  • Manually connect to a wireless network
  • Next

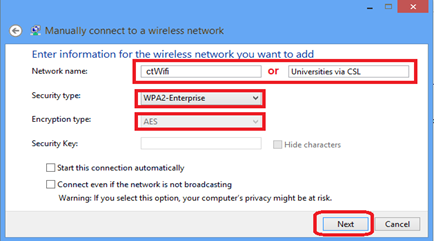

• Type in Network name, select Security type and Encryption type as
  • While you are at CT Campus, type in ctWifi in the Network name field ("ctWifi" is case-sensitive. Don't just type all letters in lower case or upper case).
  • Or While you are at CSL WiFi hotspot, type in Universities via CSL in the Network name field ("Universities via CSL" is case-sensitive. Don't just type all letters in lower case or upper case).
• Select WPA2-Enterprise from the Security type drop-down menu. Select AES from Encryption type drop-down men
• Click Nextx

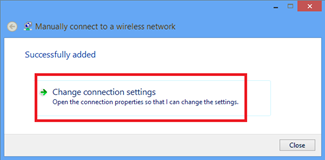

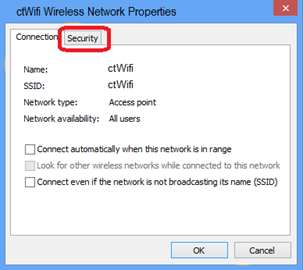

• Un-check all boxes under the Connection tab. Then click the Security the Security tabClick Change connection settings

• Under the Security tab, Select Protected EAP (PEAP) from the Choose a network authentication method drop- down menu. Click the button Settings

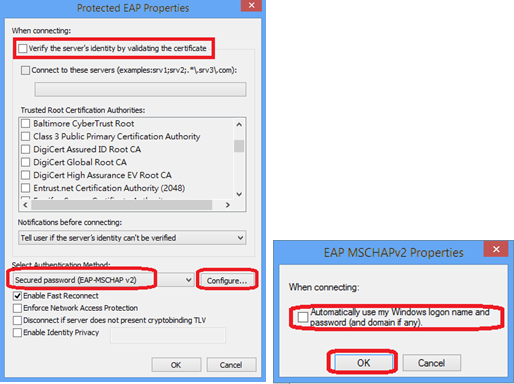

• In the Protected EAP Properties window, Un-Check Verify the server's identity by validating server certificate. Select Secured password (EAP-MSCHAP V2) from Select Authentication Method drop down menu. Click Configure...

• Un-check Automatically use my Windows login name and password (and domain if any).

• Then click OK twice to go back to Security tab, Click the button Advanced Settings.

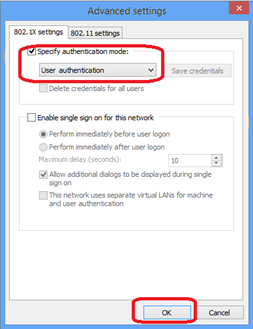

• In Advanced settings, Check Specify authentication mode, select User Click OK twice to close all the popup Windows, then click close to finish.

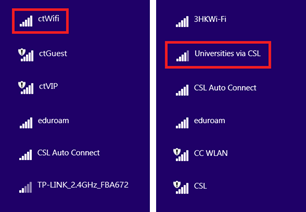

• Click the Wifi logo in Start bar and click “ctWifi” or “Universities via CSL”

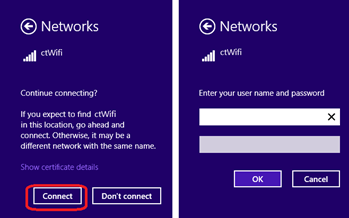

• Click Connect

• Input your Identity and SSO default Password.
• Click OK to join
• You should now see “ctWifi” / “Universities via CSL” as your selected
